CAS – Container access system

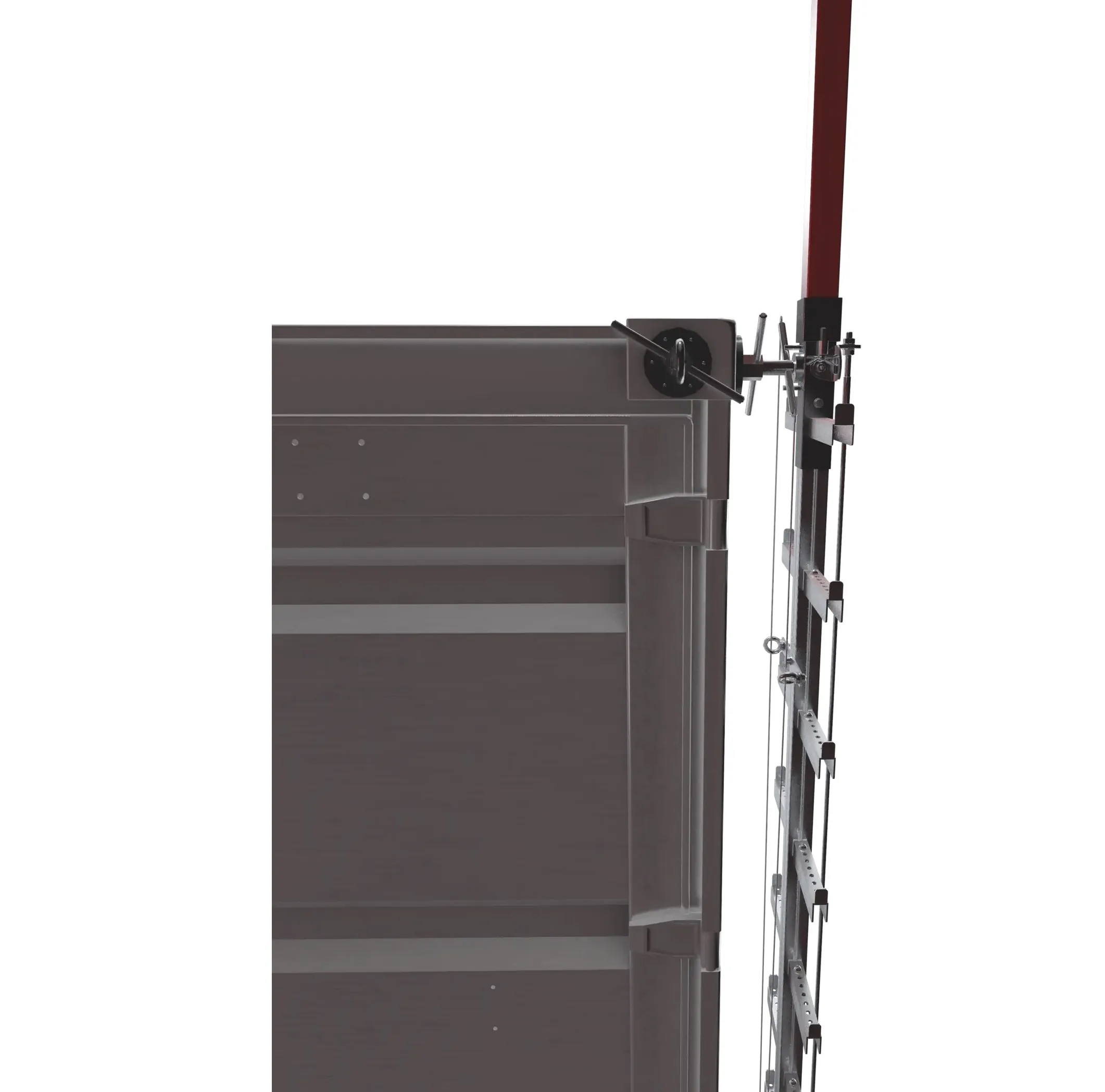

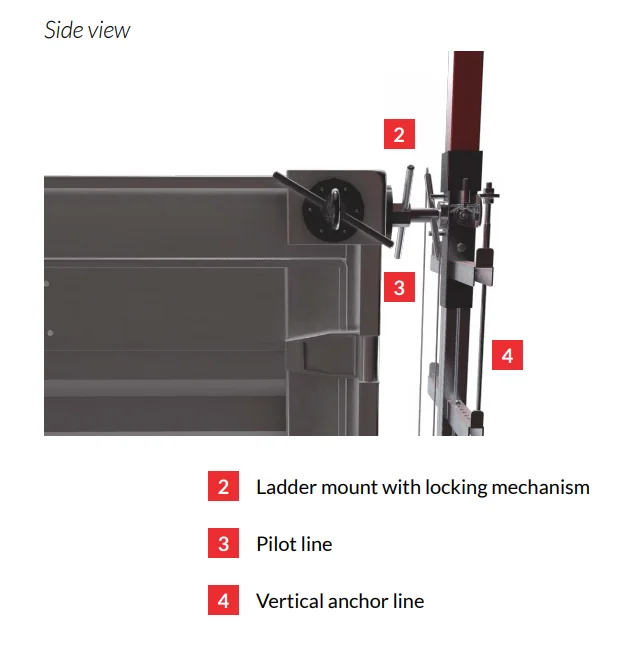

Container access system consists modular ladders which are meant to be mounted into holes of container castings. Modular ladder is integrated with vertical anchor line, anchor points and exiting post. All these elements provide continuity of protection while moving on different levels of construction containers. System was designed in conformance with EN795B and DIN18799-2 standards.

Thanks to their modularity ladders can be connected with each other to give protection on a multistore construction sites. Intermediate anchor points (mounted to side holes of container castings) provides further support when climbing and installing following modules.

Upper module is meant to be installed on a top container, and is designed to be used with exiting post. Exiting post can be used as a separate anchor point or as a part of horizontal lifeline (lifeline installed between two exiting posts) to give protection during work on a roof of container.

Vertical anchor line is a 8 mm and it can be used with any fall arrester. Both intermediate and ladder anchor points can be used to work on height and to install following modules. Neck in exit post helps to dissipate energy when fall occurs. It protects both worker and construction. We performed internal tests of the system and we are waiting for certification process.
