Quadropod – Anchor Post For Wooden Ceiling Formwork

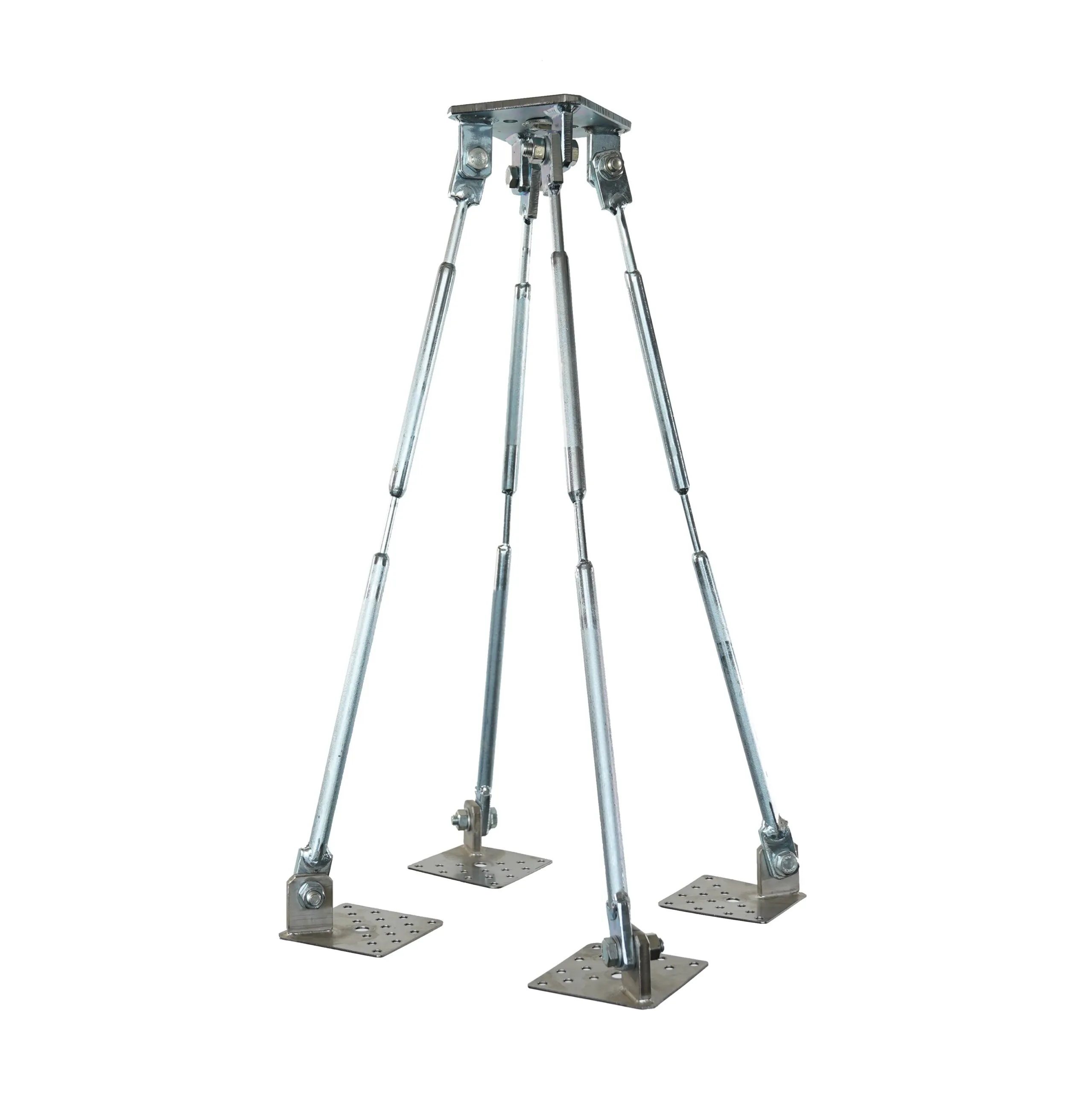

The SQ10 anchor post is designed to be mounted to horizontal formwork boards (wooden) of wooden ceiling formworks. SQ10 meets the requirements of EN 795:2012 type A for the simultaneous use by 2 persons. The unique design of the post also provides an Energy absorbing function to protect the worker and to help avoid damage to the formwork structure.

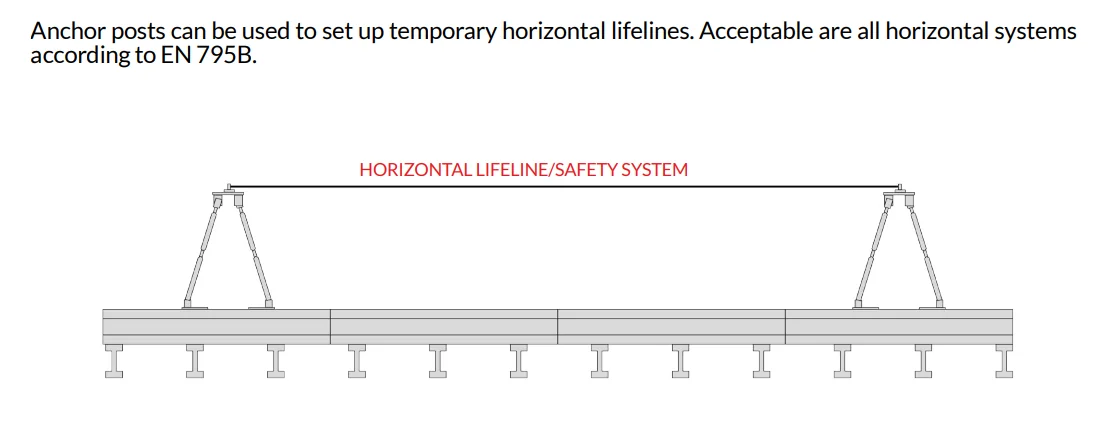

The post can be used standalone (also antipendulum) or as a component in horizontal rope lifeline systems.

The attachment point for connectors is located at a height of 70 cm from the ground, which increases work comfort, both if used as standalone or within a safety system.

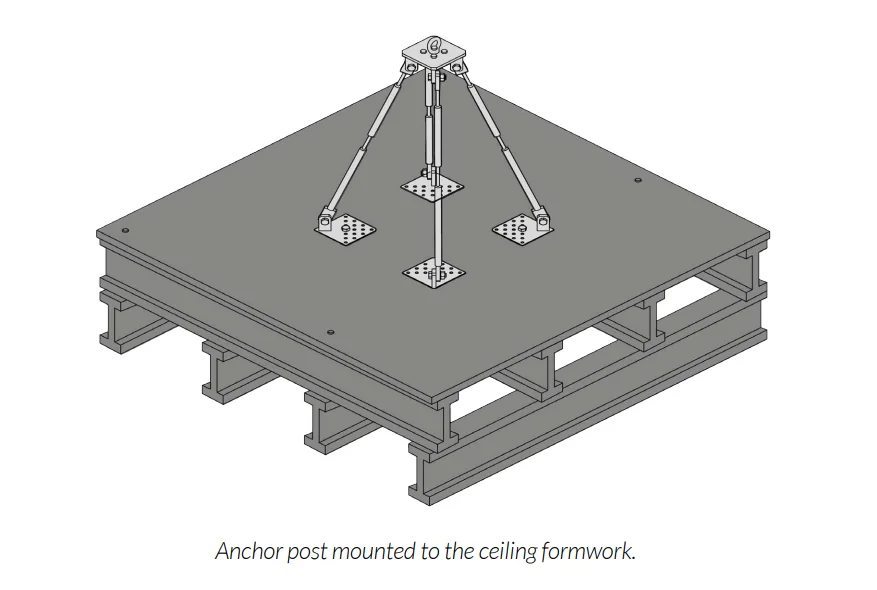

The anchor post is mounted on the horizontal plywood formwork board using 24 screws.

The formwork board must be nailed to all the formwork beams. Both the post and the base plate are made of corrosion protected and/or stainless material.

The set contains the following:

• an energy absorbing anchor post including an attachment point for connectors
• a set of screws
