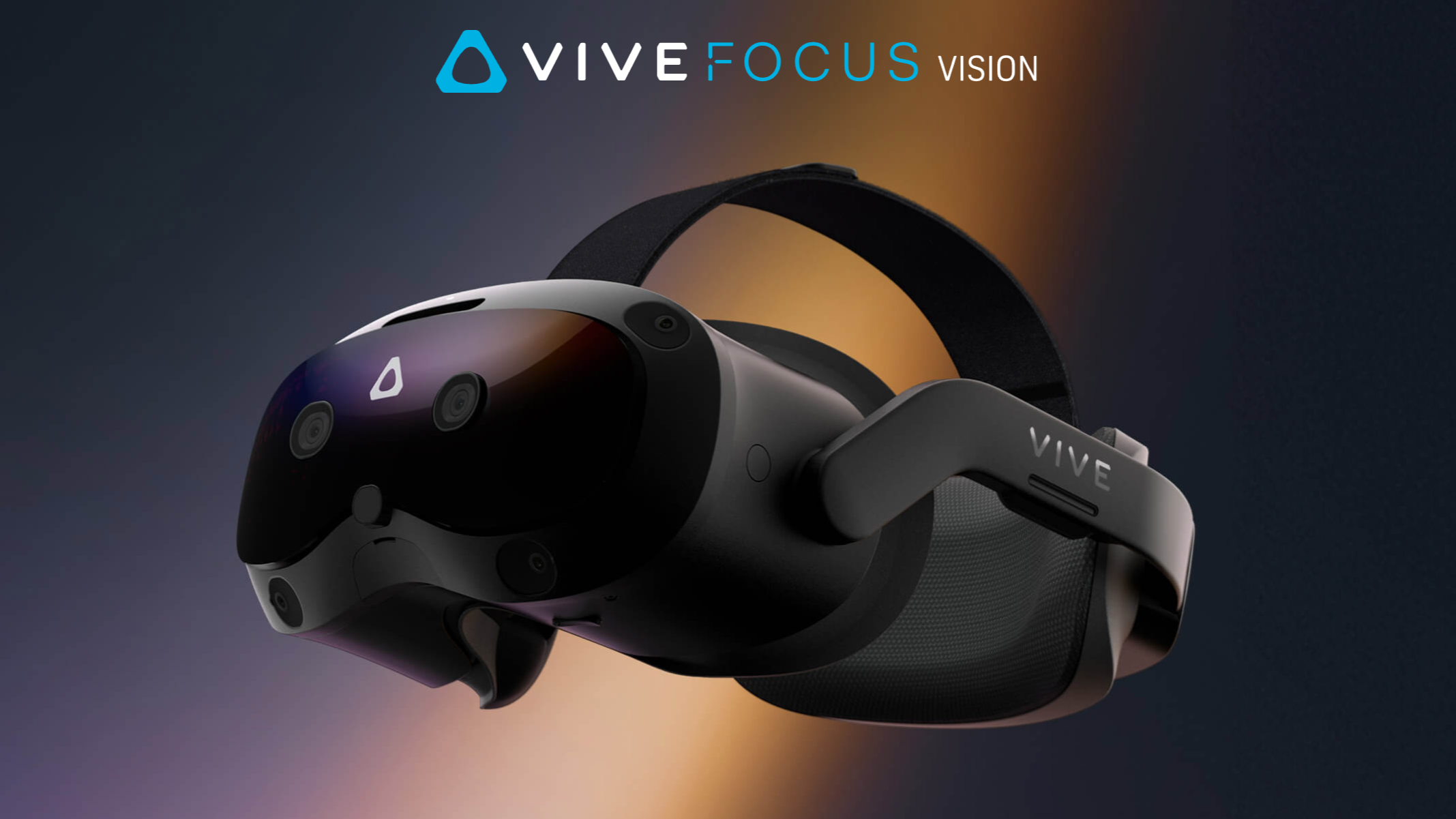

Headset VR HTC VIVE Focus Vision



VIVE Focus Vision Specifications

Display

• 2 × LCD panels

• Resolution: 2448 × 2448 pixels per eye (4896 × 2448 pixels total)

• Refresh rate: 120 Hz in DisplayPort mode [Beta]

• Field of view (FOV): up to 120°

Audio

• Dual microphones with noise and echo cancellation

• Dual drivers with patented directional speaker design × 2

• Privacy mode limiting sound leakage

• 3.5 mm audio output

Inputs

• Headset button

• Volume buttons +/−

Processor

• Qualcomm® Snapdragon™ XR2

Memory & Storage

• 12 GB LPDDR5 RAM

• 128 GB ROM

• Expandable storage up to 2 TB via MicroSD¹

¹ MicroSD card not included.

Connectivity

• USB 3.2 Gen 1 Type-C × 1

• USB 3.2 Gen 1 Type-C with DisplayPort support × 1

• Bluetooth 5.2 + BLE

• Wi-Fi 6, 6E²

² Wi-Fi 6E support depends on the country.

Sensors

• 4 tracking cameras

• 2 eye-tracking cameras

• 2 high-resolution full-color passthrough cameras

• G-sensor

• Proximity sensor

• Depth sensor

• Infrared emitter

• Gyroscope

Eye Tracking

• Data output rate: 120 Hz (binocular)

• Accuracy: 0.5° – 1.1° within 20° field of view

• 5-point calibration

• Automatic IPD adjustment

Ergonomics

• Optimal balance for comfortable, long-term use

• Magnetically attached front and rear cushions with easy-to-clean eco-leather finish

• 150 mm wide face interface, compatible with wide glasses

• Automatic eye comfort adjustment supporting IPD from 57 mm to 72 mm

• Patented quick-release head strap with easy dial adjustment

Battery

• Removable, replaceable battery with up to 2 hours of use

• Up to 50% charge in 30 minutes with included 30 W charger

• Hot-swap support thanks to built-in backup battery (up to 20 minutes standby time)

Tracked Area Requirements

Room-scale        Up to 7m x 7m play area recommended, Minimum play area is 3m x 3m (standing)

Controllers

Sensors

• Hall sensors in Trigger and Grip buttons

• Capacitive sensors in Trigger, Joystick, and Thumb Rest

• G-sensor

• Gyroscope

Inputs

• Ergonomic grip button

• Analog trigger button

• A and B / X and Y buttons

• System / Menu buttons

• Joystick

Battery

• Controller battery life up to 15 hours³

• Integrated rechargeable battery (charged via USB-C)

³ Actual battery life depends on usage and conditions.

PC Connection

• Wireless – recommended router: Netgear Nighthawk RAXE300 (7800 Mb/s, a/b/g/n/ac/ax) – router not included.

• Wired – via USB-C 3.2 Gen1 cable. – The cable is not included in the set.

Minimum System Requirements for VRAPP at Height

• Operating System: Windows 10/11

• Processor: Intel Core i7-9750H 2.6 GHz (or better)

• RAM: 16 GB (or more)

• Graphics Card: GeForce RTX 2070 (or newer)

• Ports: USB 3.0, USB-C 3.2 Gen1
